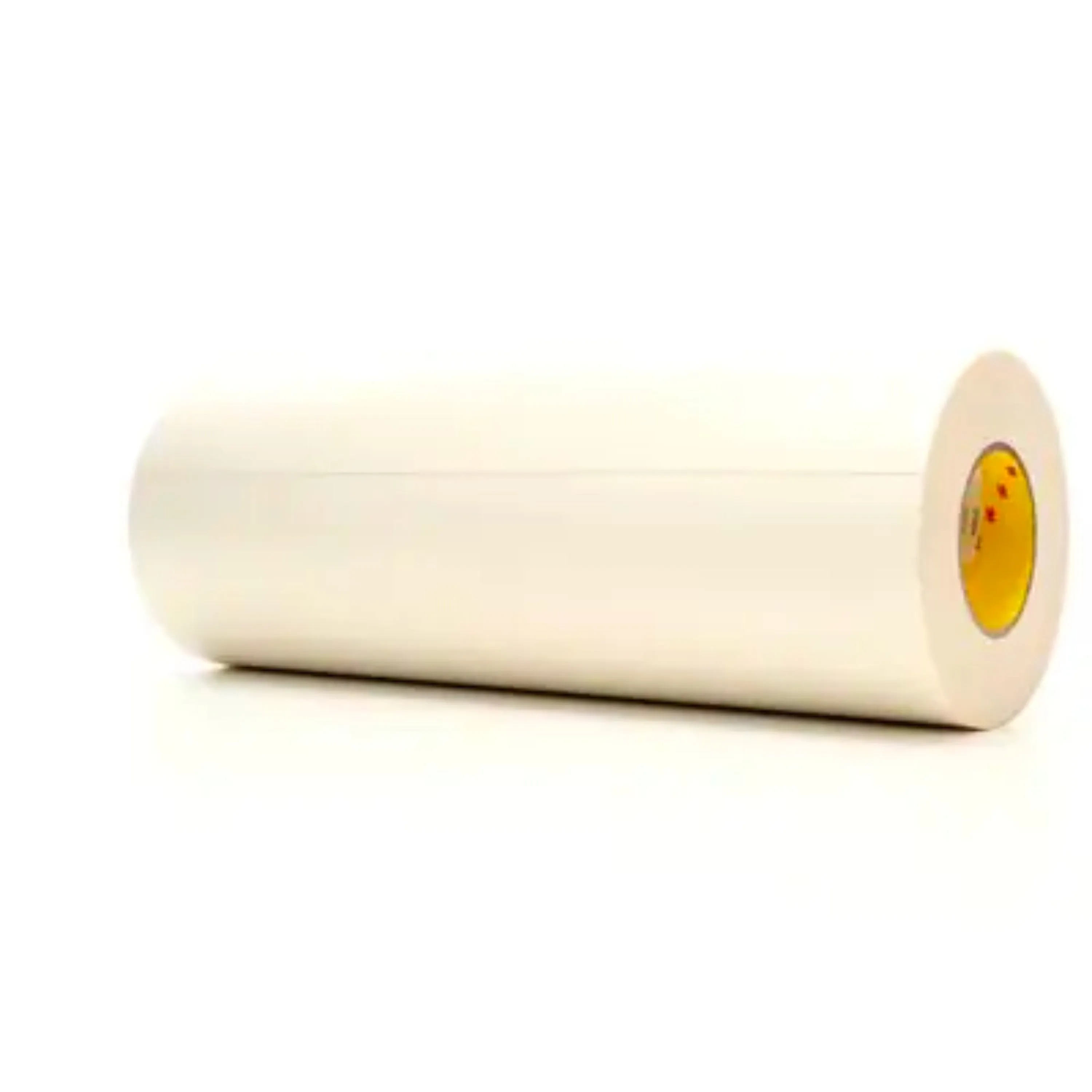

3M Cushion-Mount E1020H White Plus Plate Mounting Tape Overview
3M Cushion-Mount E1020H White Plus Plate Mounting Tape with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.
This is the standard tape for combination print. It has the air release feature that allows for bubble free mounting. This tape has excellent resistance to lifting on press allowing for clean plate removal.
Additional Information & Details
- 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
- Cushioned flexographic plate mounting sticky back foam tape
- Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots. The white foam color indicates the standard, medium density foam
- Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
- Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
- Print plates mounted on E1020H will have no air bubbles under the plate due to the air release feature designed into the tape
- Grooves in the adhesive are created by a cross-hatch pattern from the release liner
- Plate demounts from the double coated cushioned tape without adhesive residue
- Tape also removes cleanly from the sleeve or steel print cylinder
- Flexographic printing, flexographic printers
