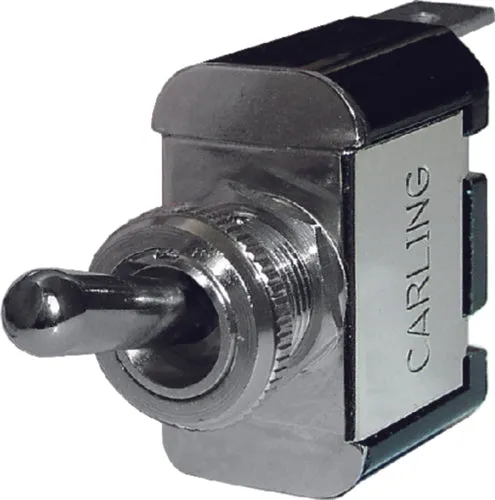

- Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck® Panels
- When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
- Nickel-plated brass and phenolic non-corrosive construction
Don't forget to get a for your switch. Or just grab a !
| Specifications | |
|---|---|
| Action | OFF-ON |
| Pole / Throw | SPST |
| Poles | 1 |
| Common Applications | lights |
| Maximum Amperage | 15A @ 125V AC 15A @ 12V DC 10A @ 250V AC |
| Terminal Type | Quick Connect Tab |
| Number of Terminals | 2 |
| Terminal Size | 0.25in (6.35 mm) |
| Weight | 0.10lb (0.05 kg) |
| Optional Accessories | ||
|---|---|---|
| Included With | ||
|---|---|---|
