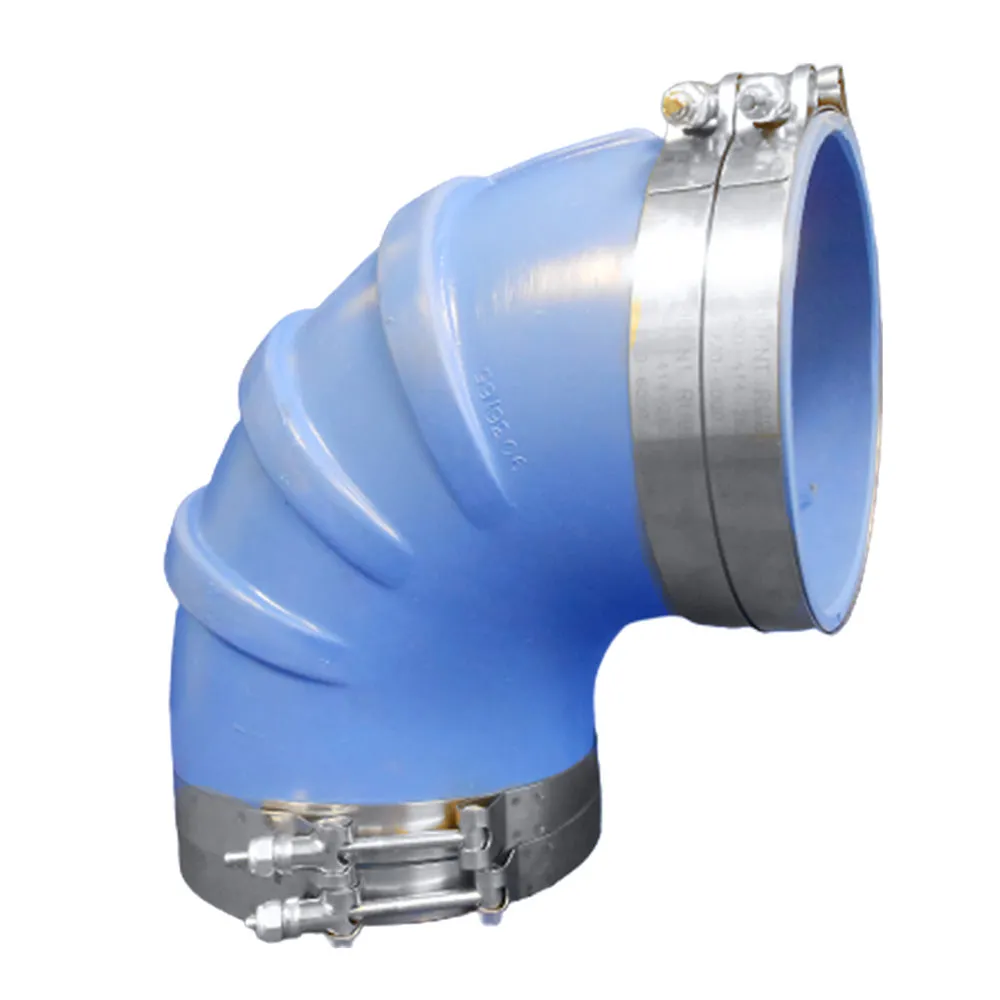

3" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.
Features:
- Four stainless steel t-bolt clamps
- Very high temp silicone/EDPM blend rubber - molded
- This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
- Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous
Construction:
- Color: Blue
- Temperature Range: up to 350°F (177°C)
Specifications:
- Inner Diameter: (inch) 3” / (mm) 76.2
- A: (inch) 5.25” / (mm) 133
- B: (inch) 5.25” / (mm) 133
- C: (inch) 1.75” / (mm) 44.4
- D: (inch) 1.50" / (mm) 38.1
- R: (inch) 2” / (mm) 50.8
- W: (inch) 0.25" / (mm) 6.4
- Elbow Degree: 90 degrees
